StringCompare Conditional

Schema

key type required description
type string required A string defining the type of conditional as stringCompare.
operator string required A string that defines the comparison operation to perform. Valid values are isEqual, isNotEqual, beginsWith, endsWith, contains, oneOf, notOneOf, isEmpty, and isNotEmpty.
string string required The string that will be used when evaluating the conditional. If the operator is oneOf or notOneOf this value should be a comma separated list of strings.
valueQuery string optional A JSONata query whose result will be used as the right operand in the comparison. The query must resolve to a single string value. If valueQuery is not provided, the data associated with the object containing the conditional is used for comparison. For example, a textOptions defined in a style on a table's column may include a conditional. If the valueQuery property is not defined, the conditional will be evaluated for each row in the table. See below for an example of how to apply string conditionals to tables.

Example

The following example shows how to alter text formatting in a table column base on a string comparison. The SKU column contains a conditional textOptions object that will bold any value that that contains the string TFX.

{
    "type": "Table",
    "style": {"layoutOptions": {"width": 250}},
    "columns": [
        {
            "rowDataQuery": "sku",
            "rowStyle": {
                "textOptions":  {
                    "weight": "bold",
                    "condition": {
                        "type": "stringCompare",
                        "operator": "contains",
                        "string": "TFX"
                    }
                }
            }
        },
        {
            "rowDataQuery": "qty"
        },
        {
            "rowDataQuery": "total",
            "rowStyle": {
                "textOptions": {
                    "format": {
                        "type": "float",
                        "formatString": "C2"
                    }
                }
            }
        }
    ],
    "headerRows": {
        "data": [["SKU", "Qty", "Total"]]
    },
    "rows": {
        "dataQuery": "sales"
    }
}

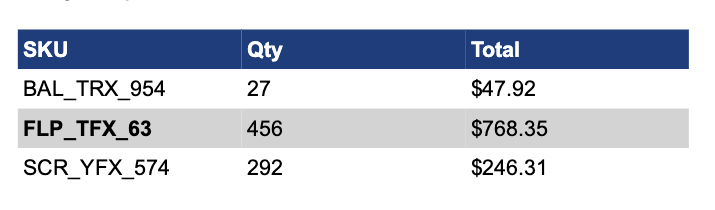

An example output of the table defined above showing conditional text formatting using a string comparison: !String Compare
