Value Compare Conditional

Overview

The ValueCompare Conditional is used to compare numeric values. It supports all numeric comparison operators: <, >, <=, >=, ==, and !=. See below for details on how to construct a ValueCompare conditional.

Schema

key type required description
type string required A string defining the type of conditional as valueCompare.
operator string required A string that defines the comparison operation to perform. Valid values are <, >, <=, >=, ==, and !=.
value number required The value to be used as the left operand in the comparison.
valueQuery string optional A JSONata query whose result will be used as the right operand in the comparison. The query must resolve to a single string, integer or float value. If a string, it may contain currency and comma separators (i.e. $12,345.56). If valueQuery is not provided, the data associated with the object containing the conditional is used for comparison. For example, a textOptions defined in a style on a table's column may include a conditional. If the valueQuery property is not defined, the conditional will be evaluated for each row in the table. An example of this is provided below.

Example

The following example shows how to alter text formatting in a table column base on a value comparison. The Total column contains a style with a conditional textOptions that will highlight any value that is less than 100 in red and any value that is greater than 400 in green.

{
    "type": "Table",
    "style": {"layoutOptions": {"width": 250}},
    "columns": [
        {
            "rowDataQuery": "sku"
        },
        {
            "rowDataQuery": "qty"
        },
        {
            "rowDataQuery": "total",
            "rowStyle": {
                "textOptions": [
                    {
                        "fontColor": "Red",
                        "format": {
                            "type": "float",
                            "formatString": "C2"
                        },
                        "condition": {
                            "type": "valueCompare",
                            "operator": "<",
                            "value": 100
                        }
                    },
                    {
                        "fontColor": "Green",
                        "format": {
                            "type": "float",
                            "formatString": "C2"
                        },
                        "condition": {
                            "type": "valueCompare",
                            "operator": ">=",
                            "value": 400
                        }
                    }
                ]
            }
        }
    ],
    "headerRows": {
        "data": [["SKU", "Qty", "Total"]]
    },
    "rows": {
        "dataQuery": "sales",
        "style": {
            "textOptions": [
                {
                    "backgroundColor": "LightGray"
                },
                {
                    "backgroundColor": "White"
                }
            ]
        }
    }
}

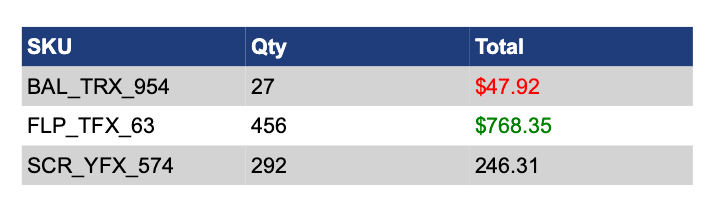

An example output of the table defined above showing conditional text formatting using a value comparison:

!Conditional Example
